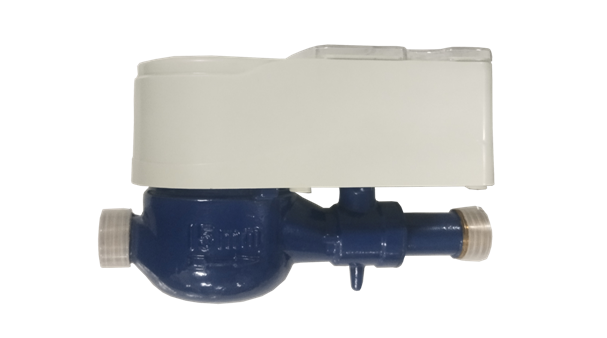

JFS2000 Prepaid Water Meter compatible with Standard Transfer Specification (STS). It provides a complete solution for utilities, property owners to better manage revenues from water services..
The water meter complies with the following standards:
- ISO4064-1: Measurement of water flow in fully charged closed conduits - Meters for cold potable water and hot water - Part 1: Specifications;
- ISO4064-2: Measurement of water flow in fully charged closed conduits - Meters for cold potable water and hot water - Part 2: Installation requirements;
- ISO4064-3: Measurement of water flow in fully charged closed conduits - Meters for cold potable water and hot water - Part 3: Test methods and equipment
- IEC62055-41: Standard transfer specification (STS) – Application layer protocol for one-way token carrier systems.
Key Features
* STS compliant
* Adjustable low credit alarm level
* Adjustable maximum credit balance limit
* Periodic Valve Protection
* Low battery warning
* Protection against magnetic interference Protection against battery cover open.
* ISO4064.1/2/3:2014
Standard for Drinking Cold Water Meters and Hot Water Meters
Accuracy Class 2
Max working pressure : 1 MPa
* IEC62055-41,br> Standard transfer specification (STS) – Application layer protocol for one-way token carrier systems.

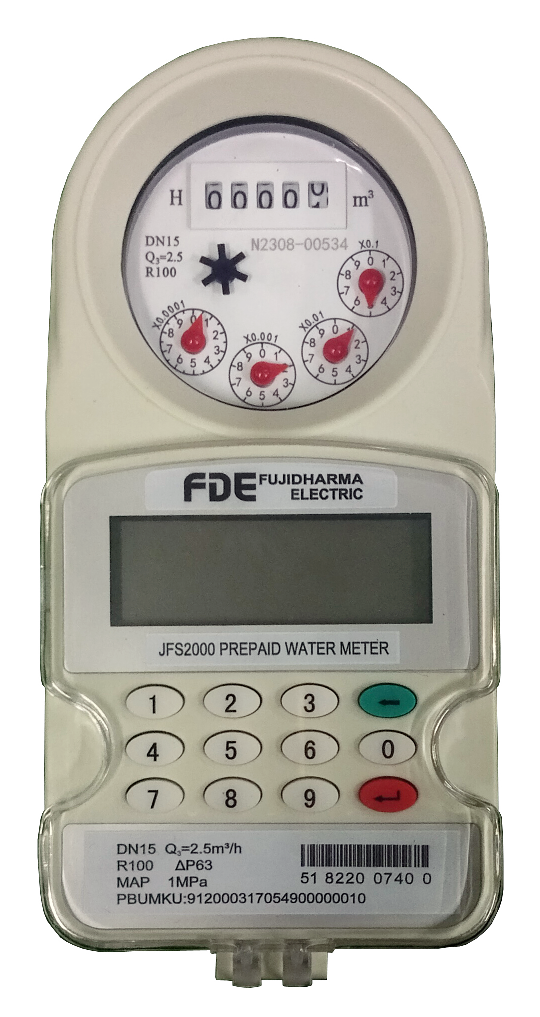

* LCD 8 digits + symbols
* Instaneous flow rate (m3/h)
* Accumulated flow quqntity (m3)
* Range 0 m3 ~ 999999.99 m3
* IP 68
* Storage : -25oC ~ +55oC
* By Keypad
* Battery DC3.6V (continuous working above 6 years
* Power Consumsion : <0.2mW
![]() ![]() |
