ONT (Optical Network Termination)

ONT (Optical Network Termination)

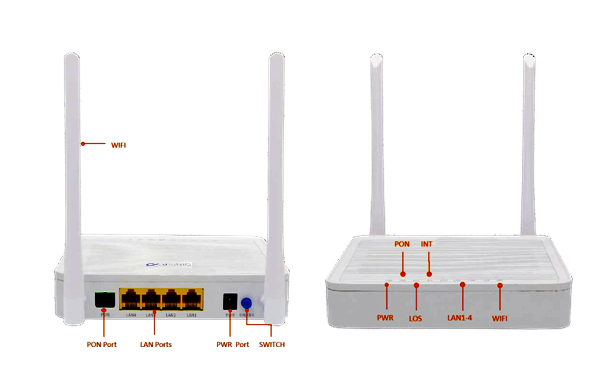

FD504GW-X-R471 have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

FD504GW-X-R471 integrates wireless function which meets 802.11 b/g/n technical standards. The 2.4GHz transmission rate up to 300Mbps.It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

For more detailed information, please see the brochure

Download Brochure

General Specification

GPON Optical Port

* Transmission rate : Rx: 2.488 Gbit/s , Tx: 1.244 Gbit/s
* Connector : SC
* Standard compliance : ITU-T G.984.2 CLASS B+
* Tx optical power : Min 0.5 dBm
* Minimum receiver sensitivity : Min -27 dBm

GE Port Spesifications

* Working mode : Auto-adaptive 10 Mbit/s. 100 Mbit/s or 1000 Mbit/s
* MTU : Min 1900 bytes

Wireless Network Access

* Standards compliance : 802.11b/g/n
* Numbers SSID : Min 2 SSIDs
* Wireless Specification : 13 working channels, Automatic rate adjustment, Transmit power adjustment, Authentication
* Authentication : Open system or shared key authentication mode, WPA-PSK, WPA2-PSK, WPA, WPA2, AES, or TKIP, Authentication mode, Encryption

Working Environment

* Type ONT Open Access : Min. 2xGE Port
* Type ONT Open Content : Min. 2xGE Port and Wifi Access
* Temperature : Min. Support up to 40 degree Celcius

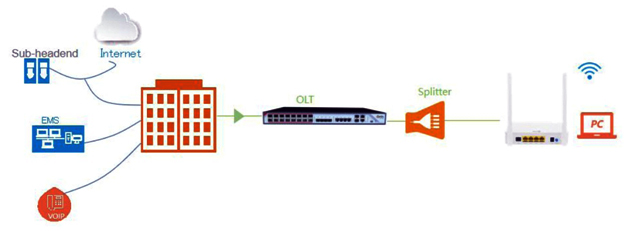

Application

* Typical Solution ： FTTH
* Typical Business：Internet,WIFI
