Measurement

* Compliance with IEC Standard
* Element : 1 Phase 2 wire
* Accuracy Class : 1.0 for active, Class 2.0 for reactive

Voltage

* Nominal voltage (Un) : 230V
* Operating range : 0.7 ~ 1.2 Un
* Power consumption : < 1.5w, 0.5VA

Current

* 5(60)A

Frequency

* 50 Hz

LCD Display

* 7 characters of 7 segment display
* Digital size: 5.8mm x 13mm
* LCD Display with power failure * with backlight

Meter constant

* 1000 imp/kWh

Battery (Optional)

* Buit-in battery
* Voltage: 3.6V
* Backup time: 15 years with power

Measured Values

* Import/Export/Absolute/Algebraic kWh
* Import/Export/kvarh
* Instaneous kW, kVar, kVA, Irms, Vrms
Frequncy, Power factor

Relay (Optional)

* One relay / 100A

Event Logs

* Tamper detection
* Configurable event alarming system
* Meter error state indication on LCD

Load Profile (Optional)

* Up to 2 channels
* Over 11520 record per channel

Communications

* Optical port

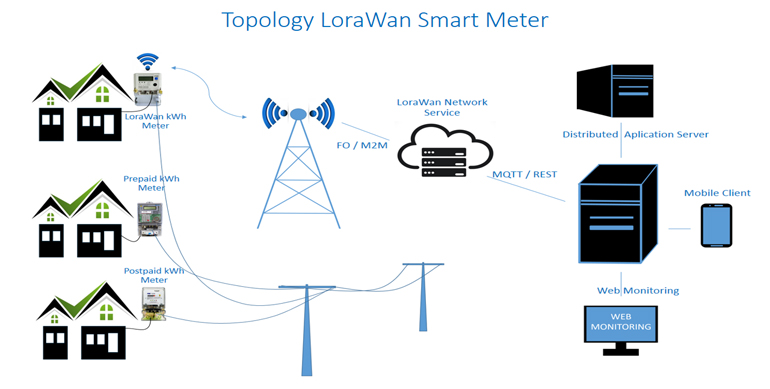

* Built-in LoRa/RF/Bluetooth modul (optional)
