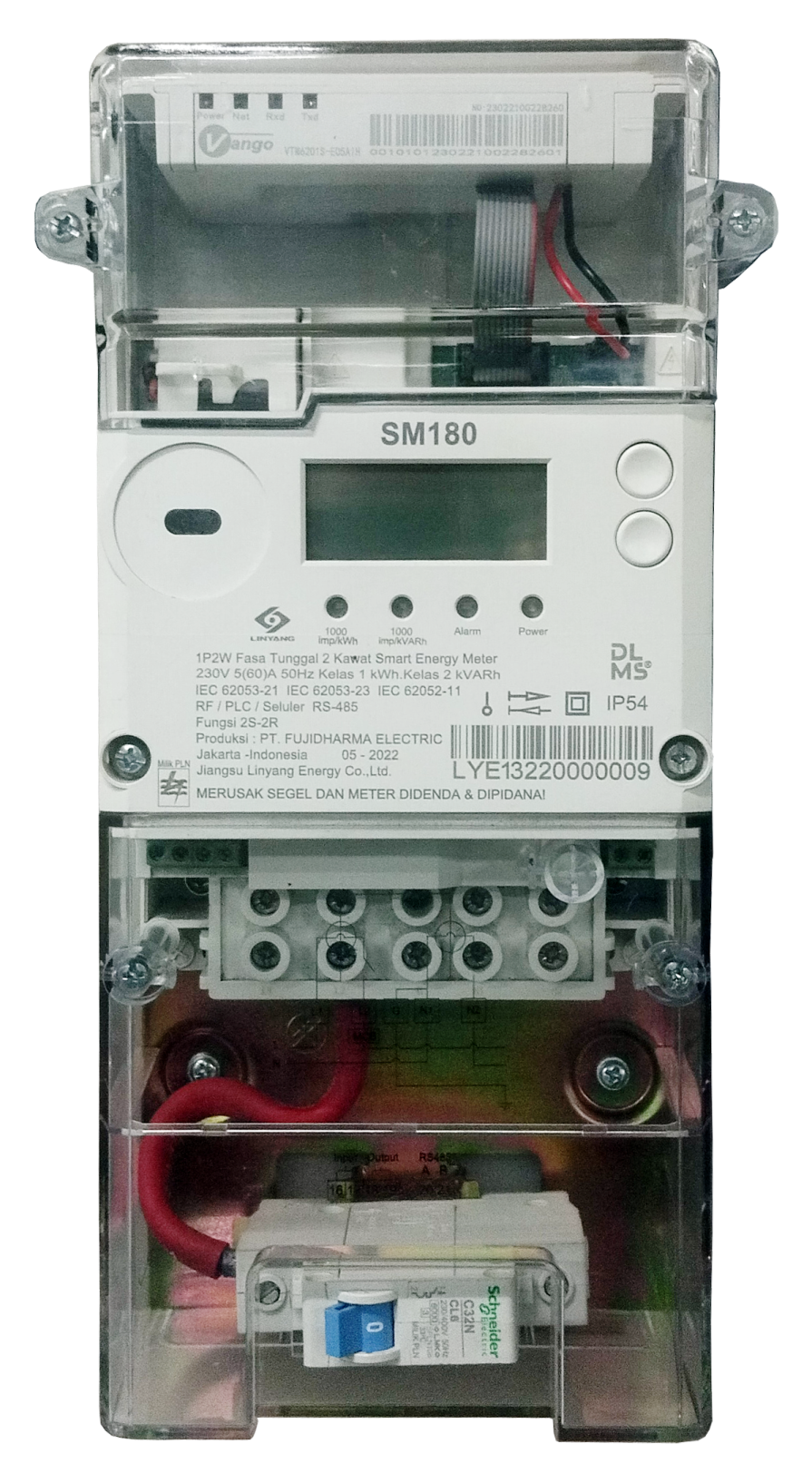

SM180 is an advanced smart energy meter which fully complies with IEC and SPLN D3.007:2021 standards and is used to measure active and reactive energy above 50Hz frequency subject to residential, small commercial customers through easy outdoor installation. The meter offers reliable performance and versatile functionality to realize Intelligent Energy Metering & Management, featuring high accuracy, excellent sensitivity, good reliability, wide measuring range, solid structure and functions including metering, load monitoring, self-diagnostic, anti-tamper, event log, alarm detection and data notification, etc. Its integrated communication module supports uplink connection for energy data collection with 2G/3G/4G, PLC and RF technologies.
* Compliance with SPLN D3.007:2021
* Wiring : 1 Phase 2 wire
* Accuracy Class : 1.0 for Active , 2.0 for Reactive
* Nominal voltage (Un) : 230V
* Operating range : 0.5 ~ 1.2 Un
* Power consumption : < 2w, <10VA
* 5(60)A
* 50 Hz
* LCD 14 secment
* 6 digits with 2 decimal
* 1000 imp/kWh
* 10 mA PF 1.0
* Dual sensing
* Reversed wiring
* Leakage Current
* Short Circuit
* Relay Open when opened the cover
* External Magnetic Induction
* Can measure the harmonic
* HPLC / GSM(2G/3G/4G)/ RF

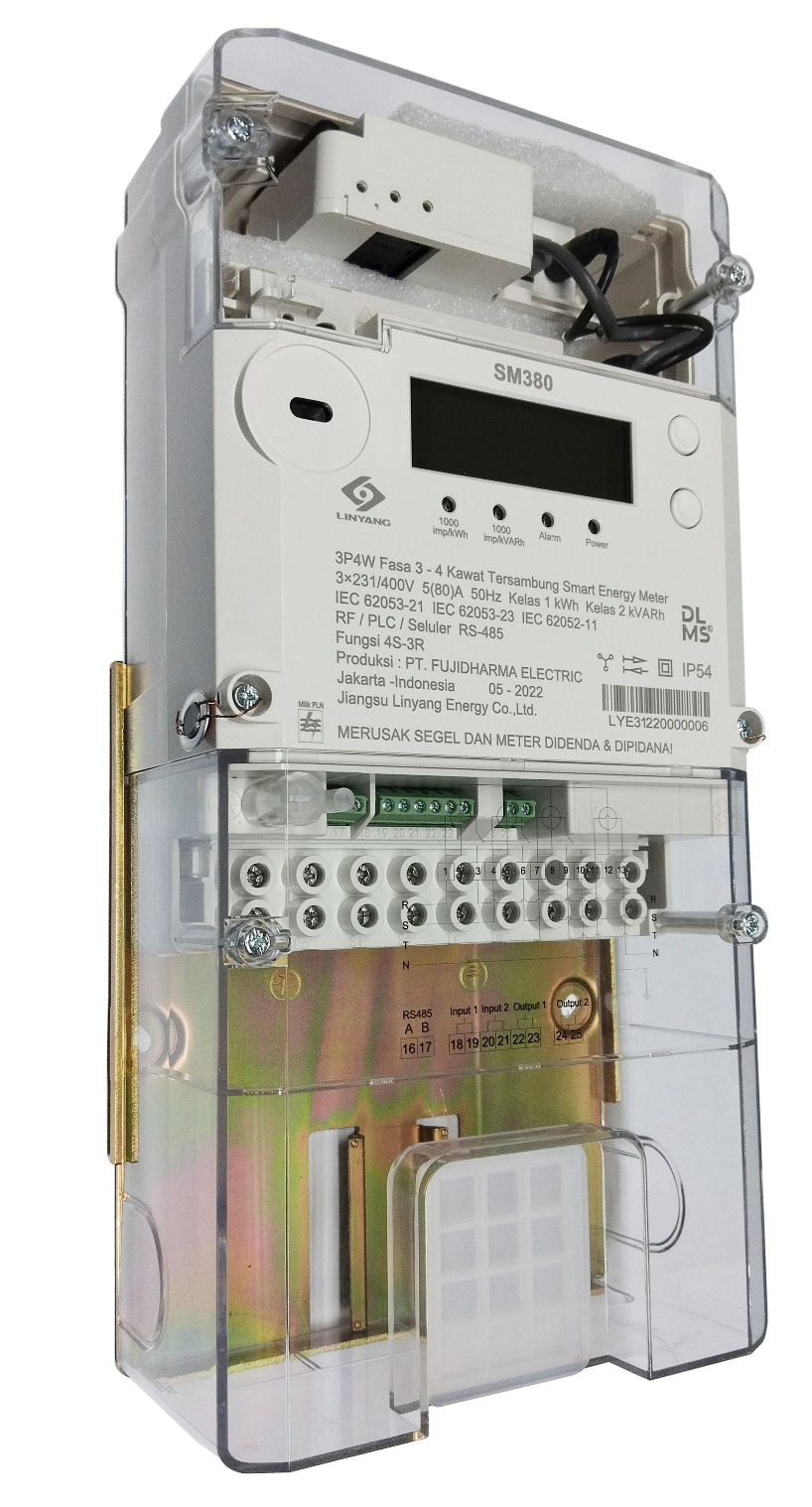

SM380 SM380 is an advanced smart energy meter which fully complies with IEC and SPLN D3.006:2021 standards and is used to measure active and reactive energy above 50Hz frequency subject to residential, commercial customers through easy outdoor installation. This meter offers reliable performance and versatile functionality to realize Intelligent Energy Metering & Management, featuring high accuracy, excellent sensitivity, good reliability, wide measuring range, solid structure and functions, including metering, load monitoring, self-diagnostic, anti-tamper, event log, alarm detection and data notification, etc. Its integrated communication module supports uplink connection for energy data collection with 2G/3G/4G, PLC and RF technologies.
* Compliance with SPLN D3.006:2021
* Wiring : 3 Phase 4 wire
* Accuracy Class : 1.0 for Active , 2.0 for Reactive
* Nominal voltage (Un) : 3 X 231/400V
* Operating range : 0.5 ~ 1.2 Un
* Power consumption : < 2w, <10VA
* 5(80)A
* 50 Hz
* LCD 14 secment
* 6 digits with 2 decimal
* 1000 imp/kWh
* 10 mA PF 1.0
* Dual sensing
* Reversed wiring
* Leakage Current
* Short Circuit
* Relay Open when opened the cover
* External Magnetic Induction
* Can measure the harmonic
* HPLC / GSM(2G/3G/4G)/ RF
