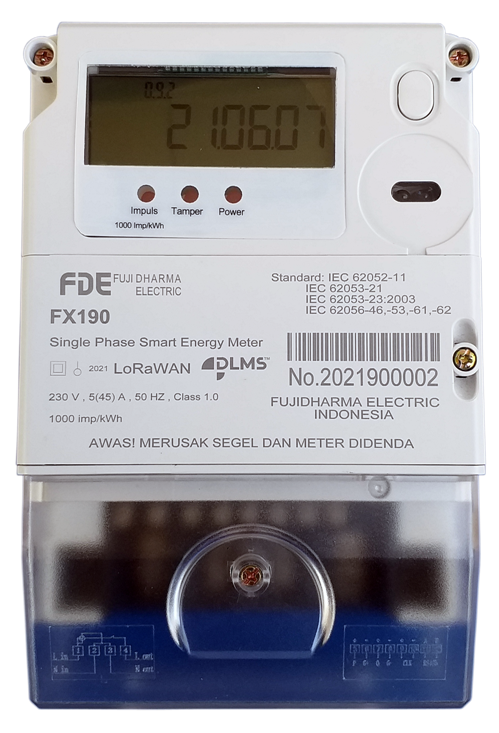

FX190 Single Phase Smart Energy Meter

FX190 Single Phase Smart Energy Meter is an AMI intelligent electric energy meter using large-scale integrated circuit and digital sampling technology. It conforms to DLMS/COSEM architecture system, and has the funtions of active energy metering and electricity consumption measurement, monthly settlement freezing and programable load record curve, recording of various electricity consumption and tampering events, and communication through RS485 and optical interfaces.

It supports single-rate and multi-rate time-sharing charging modes, and various outage modes such as remote outage in case of tampering from the meter.

The electric energy meter has been certified by the DLMS User Association and has the conditions to communicate with foreign AMI system. It is an ideal measuring instrument for power user.

Download Brochure

Spesification

Standards :

* IEC 62052-11; IEC 62053-21;
* IEC 62053-23.2003; IEC 62056-46,-53,-61,-62

Accuracy Class

* Active Class : 1.0

Voltage

* Rated voltage (Un) : 230V
* Specified Operating Range: 0.7 Un - 1.15 Un
* Extended operating voltage scope: 0.6 Un - 1.2 Un

Power consumption

* When no communication :
- Voltage circuit : < 2w / 5 VA
- Current circuit : < 0.2 VA

Current

* Rated current : 5(45)A

Frequency

* Reference Frequency : 50 Hz

LCD Display

* Quadran indication display
* Unit of amount / unit of data displayed
* Data display
* Display OBIS
* Factory status / test status
* 7 Symbols

Meter constant

* 1000 imp/kWh

Metering Functions

* Import/Export Active energy
* Import/Export reactive energy
* Time-sharing
* Storing data

DLMS

* DLMS Ready

Communications interface :

* Infrared
* Optical Probe
* LoRaWAN
* RS485 and carrier communication interface

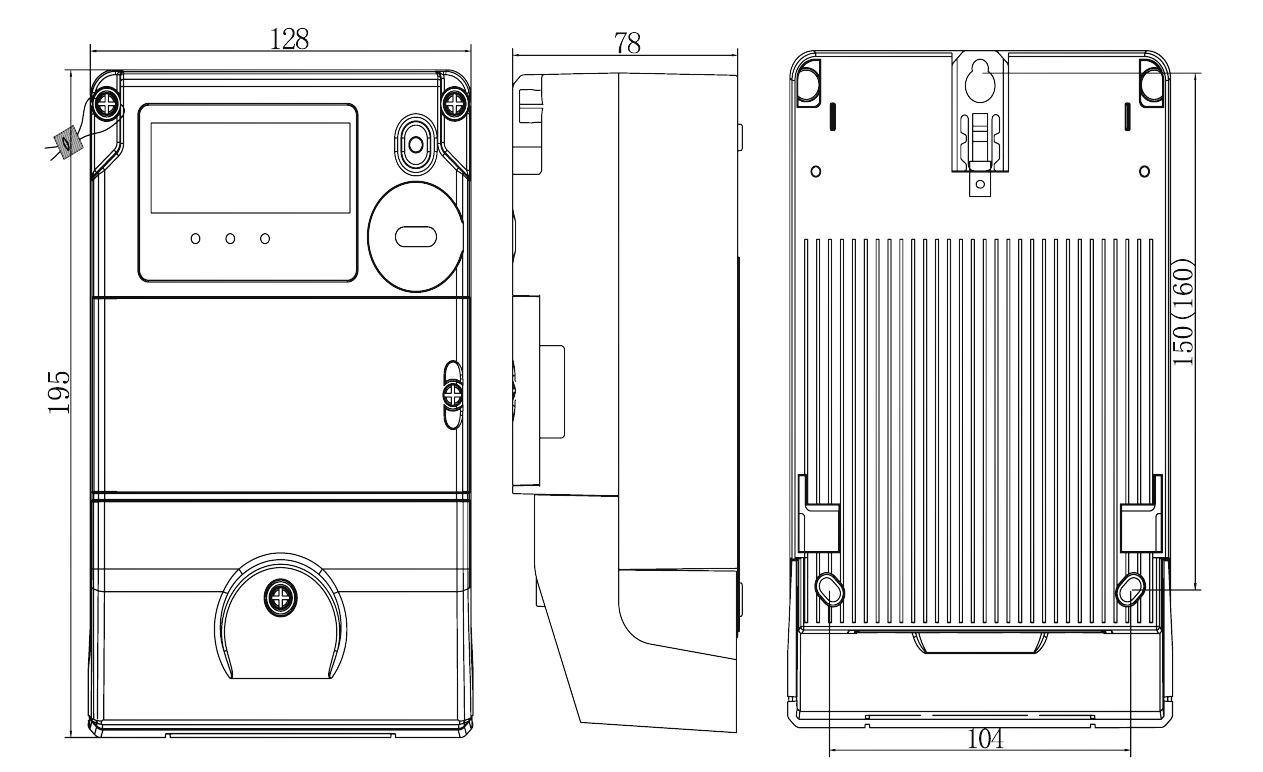

FX190 Dimension

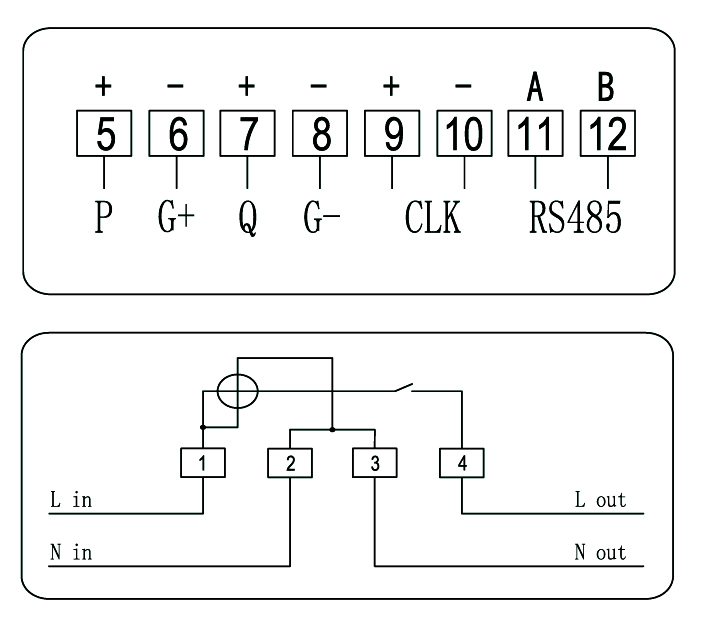

FX190 Wiring Diagram
